全球首款嵌入IPS的工业级冗余区域防火墙 WL-620F-S

在当前工业信息化大潮席卷而来的时候,我们发现工厂的一大批PLC、DCS、HMI、配套设备等控制系统全面连接到了互联网,方便了系统的互联,实现了设备与设备、人与人、人与设备之间的交互访问。但是,由此而引起的安全问题,却不容忽视,当所有设备暴露到互联网以后,控制系统被攻击的风险就会变得越来越高,因此,WitLinc Technology推出了全球首款嵌入IPS入侵防御系统的工业级冗余区域防火墙WL-620F-S,来保证您PLC、DCS、HMI、配套设备等控制系统的绝对安全。



产品详细信息见下文:



Insights

Cyberattacks on critical infrastructures & industrial environments are no longer a myth. Power generation facilities, metropolitan traffic control systems, water treatment systems, and factories are all at risk. Exploits freely available on the Internet make the Industrial Control Systems (ICS) of leading vendors easy targets for attackers.

These ICS environments can be harsh — exposing networking equipment to extreme temperatures, humidity, dust, and vibration. They require a rugged and reliable security gateway solution to detect threats and control access to critical components.



Solution

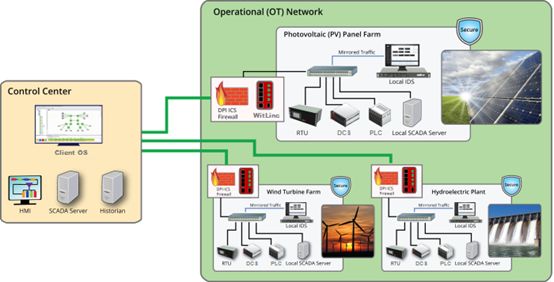

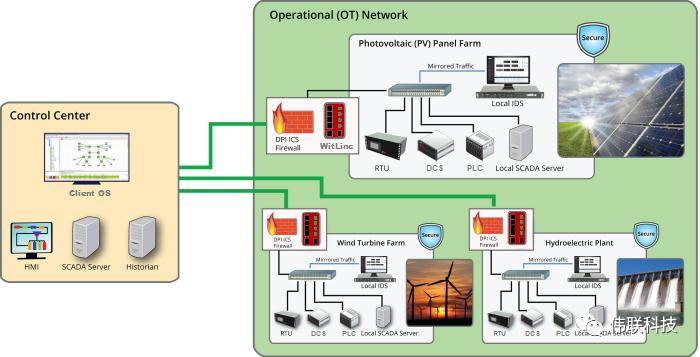

The WitLinc WL-620F-S is a rugged appliance delivering Next Generation Threat Prevention for Critical Infrastructure and Industrial Control Systems. This solid-state appliance secures SCADA (supervisory control and data acquisition) protocols and OT(operational technology) equipment. The WL-620F-S includes Firewall, IPS, Application Control, Antivirus, Anti-Bot and Snort Zero-Day Protection.



Next Generation Firewall

WL-620F-S offers broad support for specialized SCADA and ICS protocols for over 5 SCADA specific commands. Additional protocol support is available on request.

• PROTOCOL SUPPORT: CIP | DNPNET | Modbus TCP/IP | OPC |S7-Net(Siemens)

• VPN PROTOCOL SUPPORT: IPsec, L2TP, WiVPN



Integrated Threat Detection

Detect and prevent targeted attacks against ICS/SCADA components in Operational Technology (OT) environments. With the best catch rate in the industry, our threat prevention technologies minimize the disruption of operational processes when deployed in detect-mode.



Best-in-Class Management

Our unified, integrated management platform supports distributed IT and OT deployments, leading to operational consistency and efficiency of end-to-end (E2E) security. Administrators can define security policy for the entire network — including internal security, main sites, and remote sites — from a single, centrally located WitLinc Security.

With Web management approach designed for large-scale deployments, administrators can define a single security and device profile and apply it simultaneously to thousands of appliances — dramatically reducing deployment time and administrative overhead. With built-in compliance, meet and exceed emerging regulatory and other cyber security requirements. We constantly monitor the compliance status of the organization with hundreds of best practices, letting network security managers quickly assess the streng.





Technical Specifications

Network

LAN: 2 x 10/100/1000Base-T RJ45 ports | DMZ: 1 x 10/100/1000Base-T RJ45 or 1 x 1000BaseF port

 WAN: 1 x 10/100/1000Base-T RJ45 or 1 x 1000BaseF port | USB: 1 x USB 2.0

Performance

2 Gbps firewall throughput, UDP 1518 bytes | 100 Mbps firewall & IPS

450 Mbps VPN throughput | 400,000 concurrent sessions

Network Connectivity

VLAN:1024 | 802.1X security | Layer 2 (transparent) and Layer 3 (routing) mode

Routing

OSPFv2 and v3 | BGP| RIP | Static routes | Multicast routes | Policy-based routing

High Availability

Active/Passive - L3 mode

Hardware Specifications

1x CPUs, 2x physical cores | 2 GB memory  | 1x 8GB (Flash) drive

Size

(W x D x H): 160x120x42mm

Weight

1.2 kg (2.65 lbs.)

Enclosure

DIN rail and rack mount

Temperature

-40°to167°F / -40° to 75°C

Humidity

20%-90% (non-condensing)

Power

AC: 100-240V, 50 – 60 Hz

Max power consumption: 15W

Certifications

 Safety: UL, CB, CE, TUV GS

 Emissions: FCC, CE, VCCI, RCM/C-Tick

Environmental: RoHS, REACH1, ISO140011



伟联科技:

WitLinc Technology作为智慧工业方案解决专家,始终坚持从工业用户实际应用问题出发,以独具特色的工业智能路由器——WiRouter系列产品为工业用户妥善解决远程数据访问和远程设备维护、诊断的难题;以工业私有云——WiCloud系列创新产品为工业用户提供工业私有云解决方案和服务平台;以工业安全防火墙——WiSecurity系列产品保障不同的工业控制系统之间安全的隔离;以工业服务器——WiServer系列产品为不同工业现场搭建高性能、高可靠性、免维护、高性价比的工业信息系统;多系列产品的交互使用为工业用户有效构建出完美的网络通讯、网络安全解决方案。并且,WitLinc的所有产品均符合IEC62321、IEC60068、EN55022 等技术标准,并通过 RoHS、FCC、CE 等多项认证。在石油、天然气、煤炭、矿山、冶金、水处理、新能源等众多工业环境应用中,深得用户信任和喜爱。

伟联科技作为WitLinc Technology 国内唯一授权经销服务商,始终秉持客户导向的理念,坚持7×24小时为客户提供全方位WitLinc Technology 全线产品的技术支持和销售服务,以专业的技术与服务团队,仔细倾听客户的需求,快速解决客户的问题,并针对国内用户实际需要,以云技术、大数据为依托推出支持Windows、Android、IOS跨平台3D工业组态软件-WiSCADA,为客户创造最大的价值,为国内工业IT与OT的融合与发展不懈奋斗。
