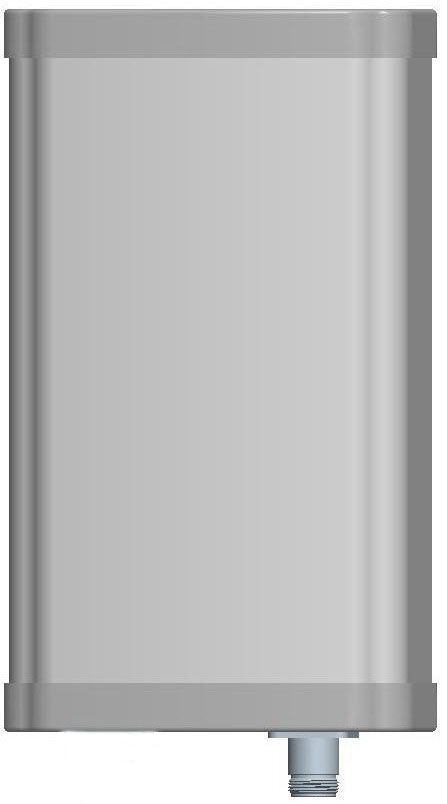

WL-5017-DP 5GHz 17dBi定向天线

Model

XA-5017-DP

Frequency (MHz)

5150~5850

Polarization

Vertical

Gain (dBi)

17

Electrical downtilt (°)

0

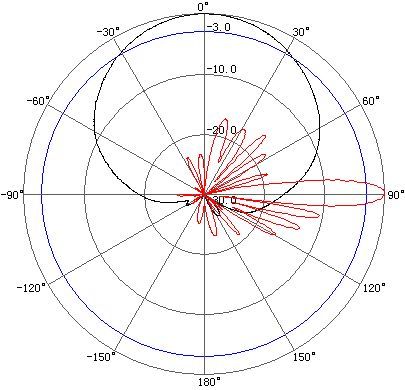

Half power beamwidth (°)

Horizontal:65

Vertical:7.5

F/B Ratio (dB)

≥23

Impedance (Ω)

50

VSWR

≤1.7

Max Power(W)

50

Lighting Protection

DC Ground

Mechanical Specifications

Connector

N Female

Antenna Dimension(L×W×H:mm)

400×128×56

Packing Dimension(L×W×H:mm)

500×230×160

Weight (kg)

1.3

Radome Material

UPVC

Radome Color

Grey

Mechanical tilt capability (°)

0~15

Operating Temperature(℃)

-40~60

Rated Wind Velocity (m/s)

60

Mast Diameter (mm)

35~75

Mounting Kits

MK003

5150-5850MHz
