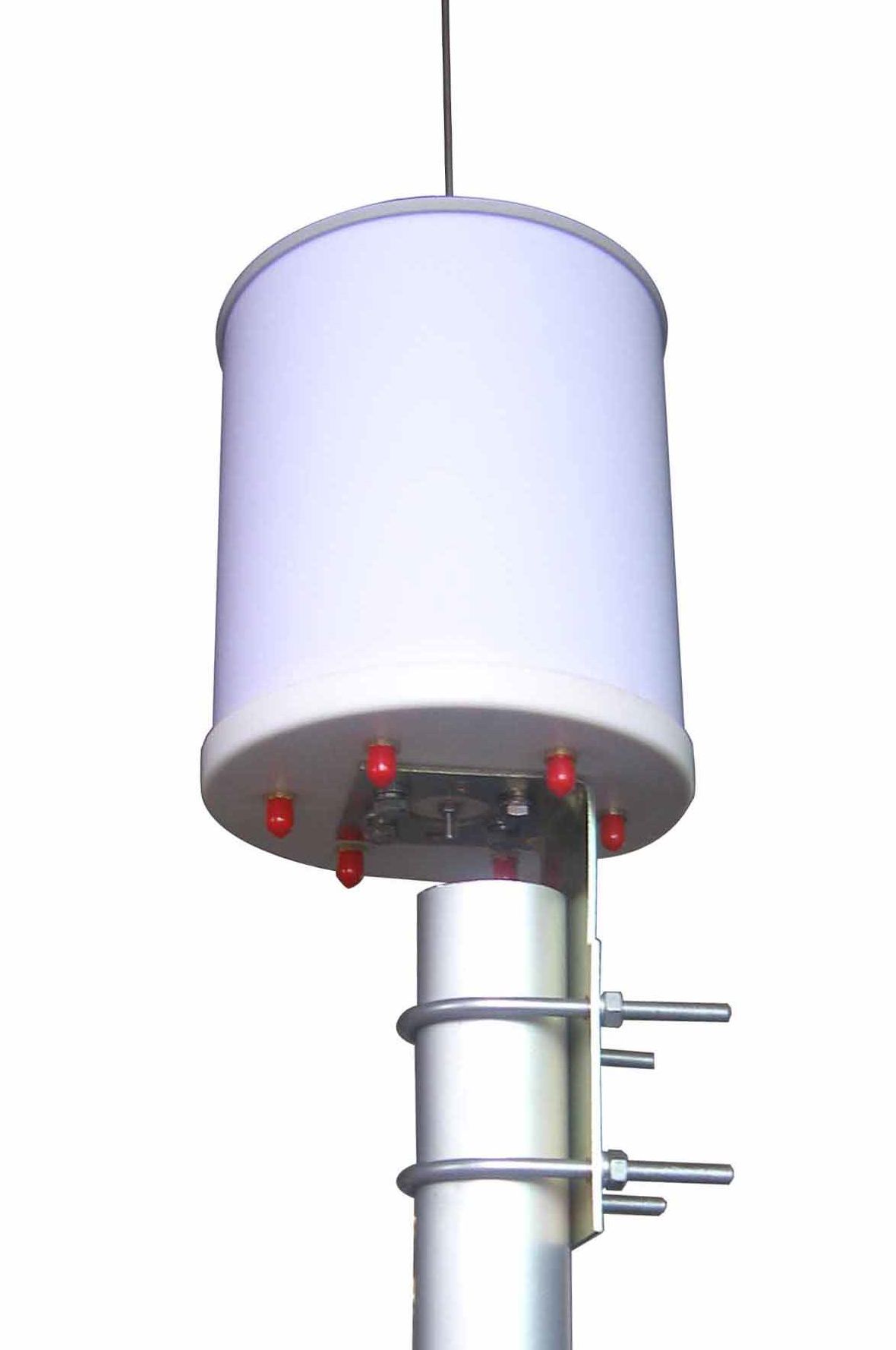

WL-2511-O3 2.4GHz & 5.8GHz 11dBi MIMO 全向天线

Model

WL-2511-O3

Frequency (MHz)

2400~2500

5150~5850

Bandwidth(MHz)

100

700

Polarization

Vertical

Gain (dBi)

8

11

Beamwidth(°)

E:17

E:10

Impedance (Ω)

50

VSWR

≤1.5

≤2

Max Power(W)

20

Connector

6 × N Female or customized

3 × 2.4GHz ports,3 × 5GHz ports

Dimension(mm)

φ145×320

Radome Material

ABS/PMMA

Radome Color

White

Weight(kg)

1.2

Rated wind velocity(m/s)

60

Mast Diameter(mm)

φ30~φ50

● 2.4GHz/5GHz WLAN,WiFi system
● IEEE802.11a/b/g/n
● Point to multipoint application

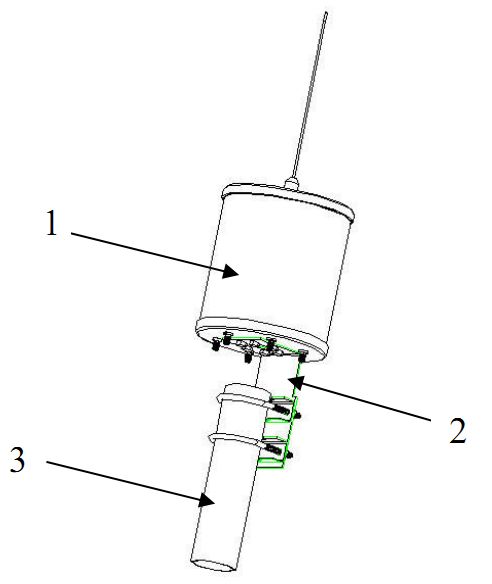

(1) Antenna

(2) Bracket

(3) Mast supplied by user
